High Speed T Grid Ceiling Roll Forming Machine PLC Control 380V50HZ
Work Flow
Decoiler------feeding------roll forming---------punching-------cut to length-----output table
Machine Component
| Decoiler | 2set |
| Roll Forming Machine | 1set |
| Punching Device | 1set |
| Cutting Device | 1set |
| PLC Control System | 1set |
| Hydraulic Pump | 1set |
| Output Table | 1set |
Decoiler
| Max. Width | 500mm |
| Inner Diameter | 450-550mm |
| Out Diameter | 1500mm |
| Max. Loading Capacity | 3000kgs |
| Type | Hydraulic Or Manual |
Roll Forming Machine
Rolled Material: Cold Rolled Steel Sheet
Material Thickness: 0.2-0.4mm
Rollers: 14 Groups
Material for Rollers: 45# steel(quenching and Harding and chroming)
Diameter of shaft: 40mm
Material for shaft: 45# steel(quenching and Harding and chroming)
Hardness for Heat Treatment: HRC55 – 60
Frame panel thickness: 20mm
Bottom frame: 35# H-section steel
Motor Power: 3kw
Driven type: gear
Speed:10-15m/min
Cutting And Punching Device
Material for Cut-Off Modular:Cr12 steel
Hardness for Heat Treatment:HRC55 – 60
Cut-Off Type: Hydraulic, Automatic Cut-Off
Material for punching die: Cr12steel
Power: 5.5kw
Control System
| Type | PLC Frequency Control System with touch screen |
| PLC Brand | Delta |
| Encoder Brand | Omron |
| Length Error | ±2mm |
| Language | English and Chinese |
| Voltage | 380v/50HZ, 3Phase (it depends on customer requirement) |
Hydraulic Pump
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
Our Service
| Pre-Sales-Service | If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. Without visiting, we will send you user manual and video to teach you to install and operate. |
| After-sals-Service | Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas. If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things. |

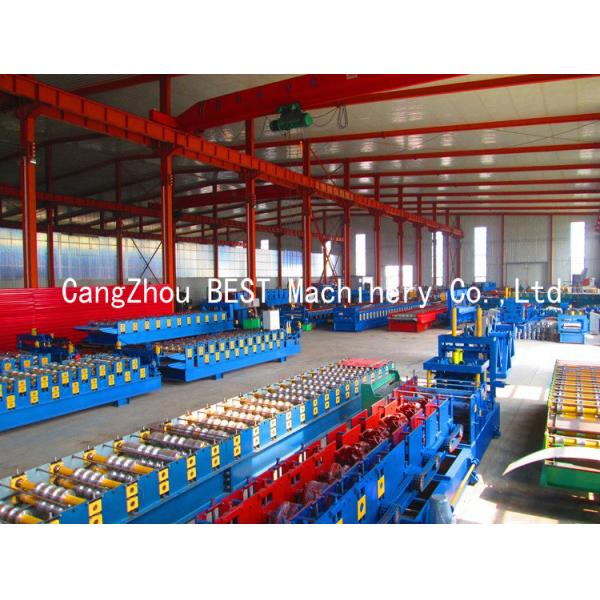

Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
