Brand Name : BEST
Certification : CE
Place of Origin : CHINA
MOQ : 1 set
Price : USD35000---40000
Payment Terms : L/C, T/T
Supply Ability : 20 sets/month
Delivery Time : 30 work days
After-sales service provided : 380V 50Hz 3phases
Condition : New
Weight : 5T
Use : Roller shutter door roll forming machine
Tile type : Colored Glaze Steel
Voltage : 380V 50Hz 3phases
Machine parameters of trapezoidal panel roll forming machine
NO | Type | Specification | |
1 | Raw material | Type | PPGI |
Thickness | 0.3-0.6 mm | ||
2 | Decoiler | Operation | Manual |
Weight apacity | 5 Tons | ||
3 | Main body | Roller station | 13 row |
Diameter of shaft | 70 mm | ||
Shaft material | 45# with 0.05mm chrome | ||
Roller material | Cr 12 Mov steel | ||
Type | Chinese type | ||
Frame | 300mm C-beam | ||
Frame thickness | 16 mm | ||
Material | Cr 12 | ||
Operation | Hydraulic automatic | ||
Working speed | 10-30m/min | ||
4 | Power | Driving way | 1 inch chain |
Main motor | 5.5 KW | ||
Voltage | 380V/50HZ, 3 phase | ||
5 | Control box | Electric box | PLC control system, inventer |
PLC brand | Delta made in Taiwan | ||
Inverter brand | Delta made in Taiwan | ||
Language | Chinese and English |
![]() |

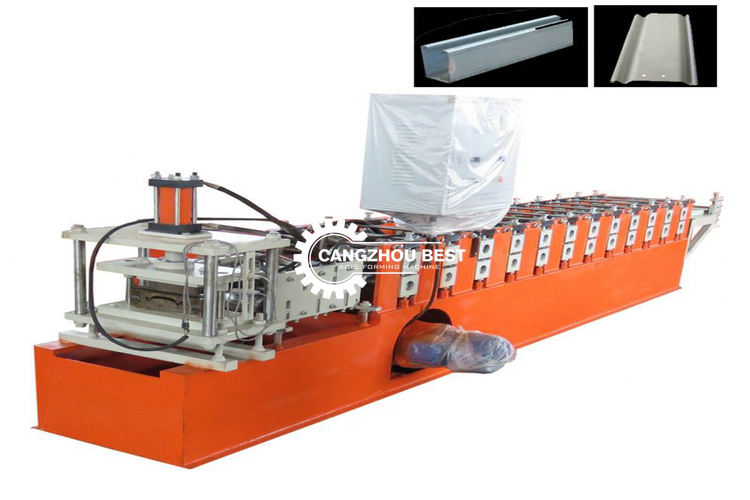

Adjust Roller Door Panels PPGI Cold Roll Former Images |
